Outdoor kiosk Hawk

Hawk

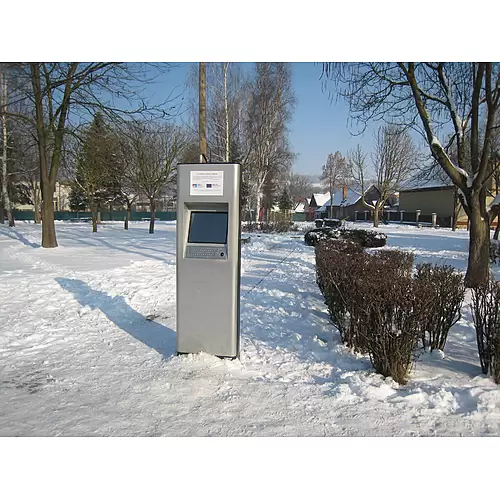

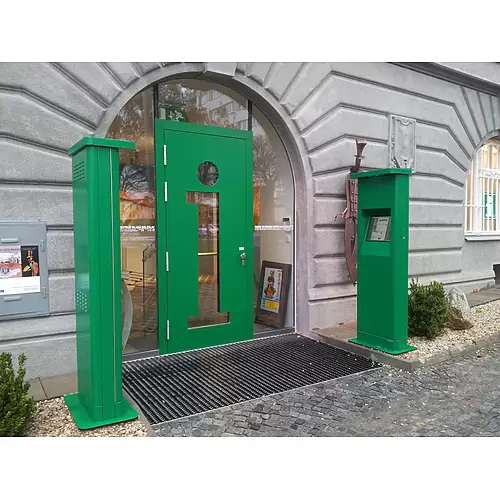

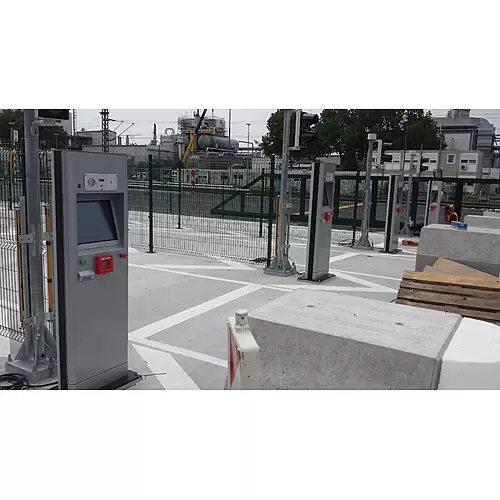

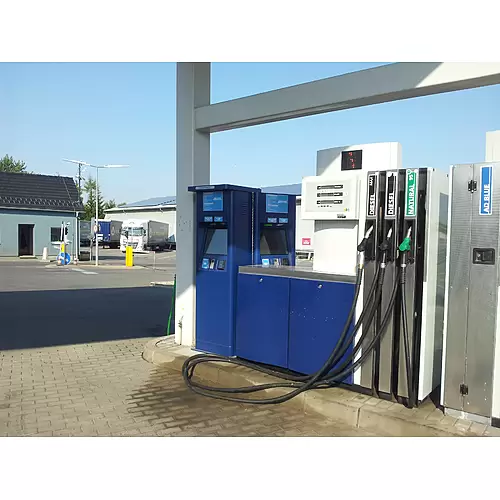

Strong and build quality makes the Hawk ideal kiosk for most outdoor applications. Excellent for public information systems, tourist and city information, truck-entry systems and other similar outdoor kiosk projects.

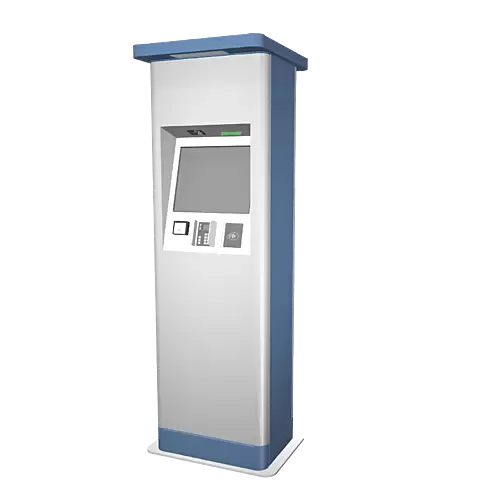

Outdoor kiosk Hawk - Basic specification

  • Outdoor kiosks family with full thermal insulation
  • Design: Small, Wall, Standard and Truck (tall)
  • Fully secured wiring is installed for maximum user safety and kiosk hardware protection
  • Multipoint safetylock
  • Temperature and humidity inside the kiosk is controlled by thermostat and hygrostat sensors
  • Zinc coated chassis plus special RAL outdoor paint
  • Wiring includes: Current protection, High voltage protection, Circuit braker, Thermostat and Hygrostat, Ventilation and Heater
  • Industrial PC in custom configuration
  • The Hawk kiosk is available in many different configurations, depending on application...

Especially for outdoor information systems where a larger screen is needed we have a kiosk family line called Toucan with High Bright LCD screens starting from 32inches. Screens are in portrait or landscape orientation, single or double sided, with touch or without touch.
Bigger screen sizes with 65inches+ are also possible upon request.

Please visit Toucan 32, Toucan Wall 32, Toucan 43, Toucan Wall 43, Toucan 55 and Toucan Wall 55 product pages to get more information.

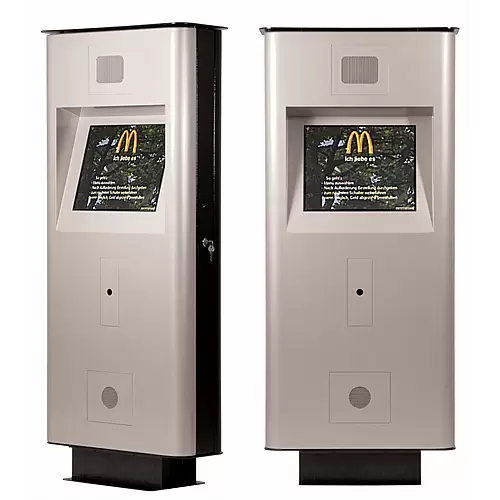

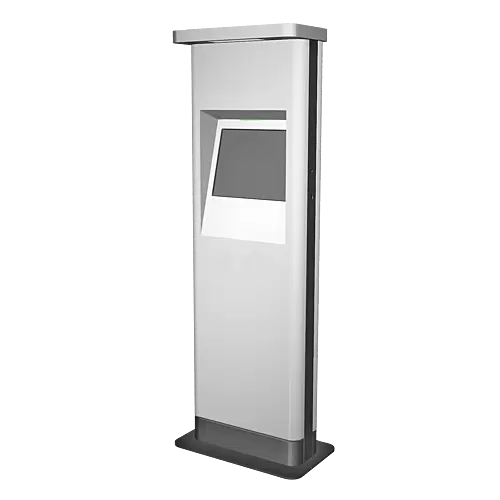

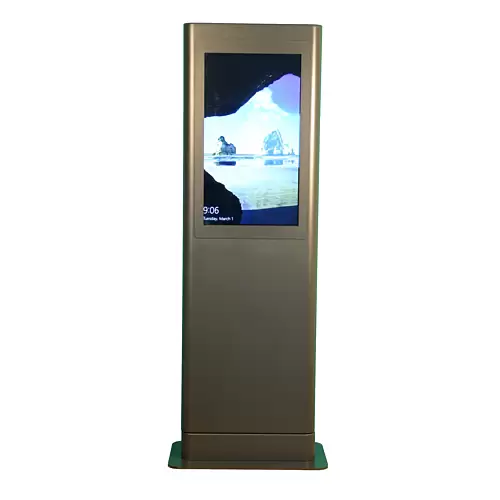

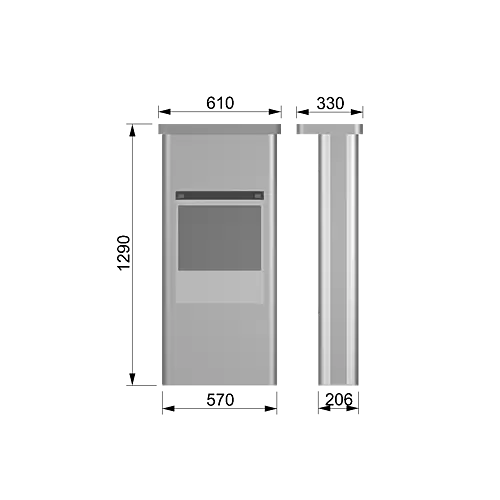

19" LCD

  • 19“ LCD 1500nits, 1280x1024
  • Vandal-proof PCap touchscreen, 6mm glass
  • Options for lot of additional peripherals
  • Dimms: 1820(H) x 570(W) x 210(D)mm (without roof)
Outdoor kiosk Hawk
Outdoor kiosk Hawk

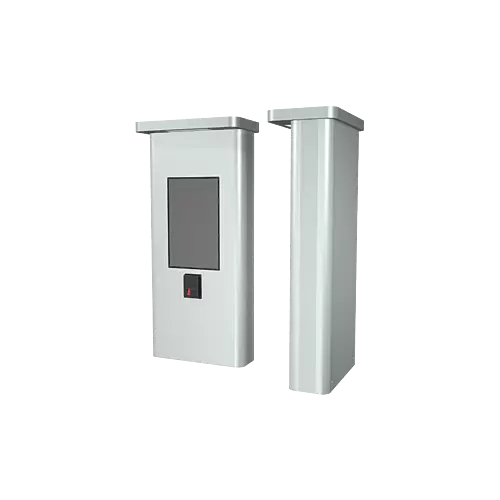

19" LCD DOUBLE-SIDED

  • 2x 19“ LCD 1500nits, 1280x1024
  • Vandal-proof PCap touchscreen, 6mm glass
  • Options for lot of additional peripherals
  • Dimms: 1820(H) x 570(W) x 420(D)mm (without roof)
Outdoor kiosk Hawk
Outdoor kiosk Hawk

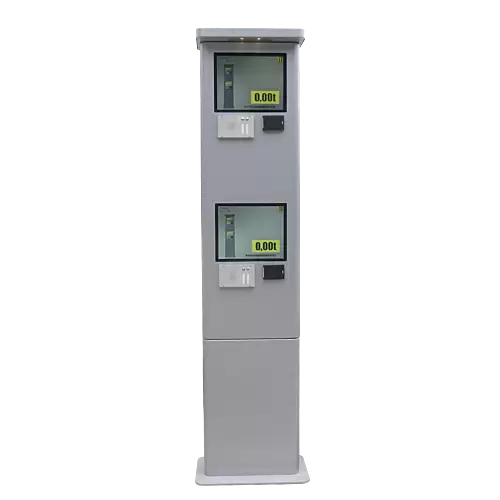

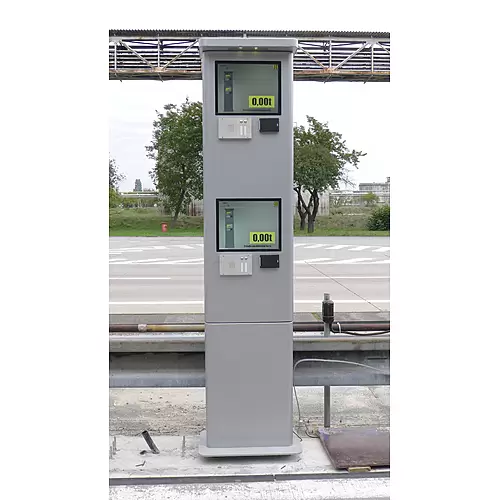

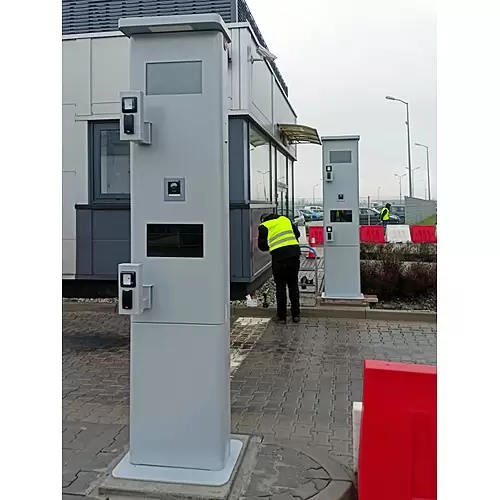

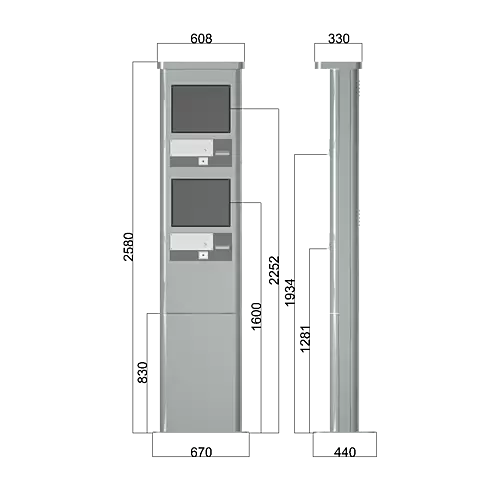

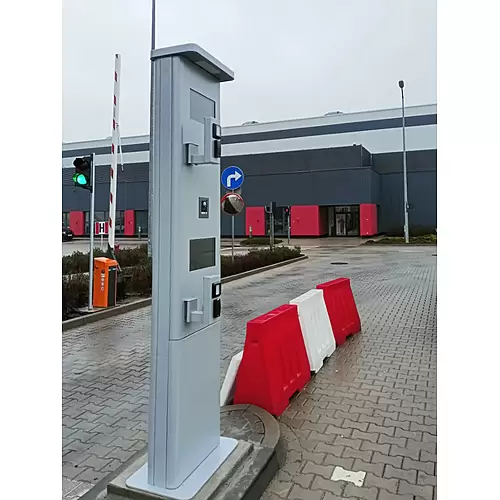

19" LCD TRUCK VERSION

  • 2x 19“ LCD 1500nits, 1280x1024
  • Vandal-proof PCap touchscreen, 6mm glass
  • Options for lot of additional peripherals
  • Dimms: 2530(H) x 570(W) x 210(D)mm (without roof)
Outdoor kiosk Hawk
Outdoor kiosk Hawk

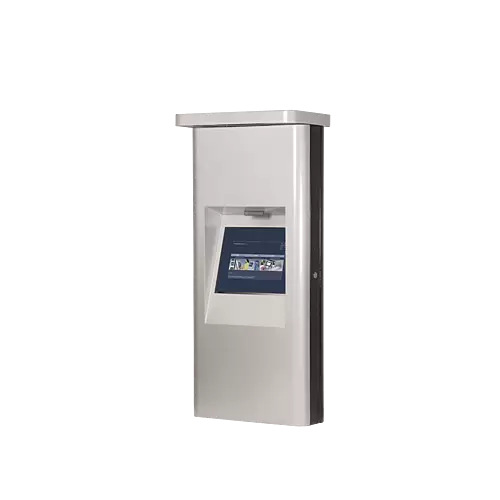

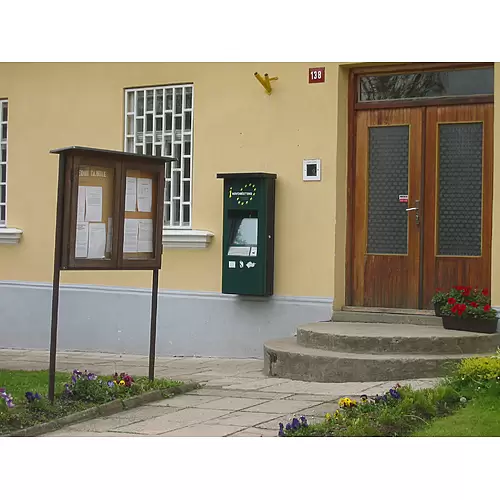

19" LCD WALL

  • 19“ LCD 1500nits, 1280x1024
  • Vandal-proof PCap touchscreen, 6mm glass
  • Options for lot of additional peripherals
  • Dimms: 1240(H) x 570(W) x 210(D)mm (without roof)
Outdoor kiosk Hawk
Outdoor kiosk Hawk

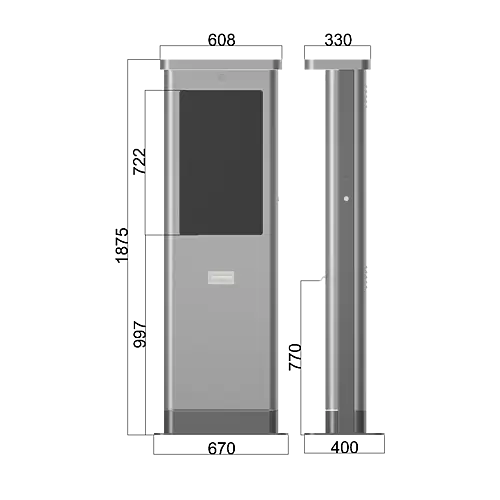

22" LCD

  • 21,5“ LCD 1500nits, 1080x1920
  • Vandal-proof PCap touchscreen, 6mm glass
  • Options for lot of additional peripherals
  • Dimms: 1820(H) x 570(W) x 210(D)mm (without roof)
Outdoor kiosk Hawk
Outdoor kiosk Hawk

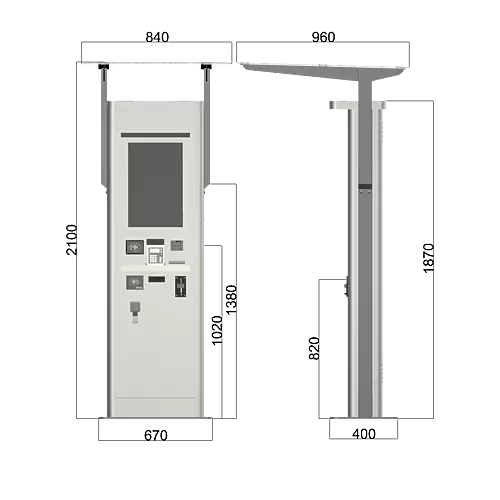

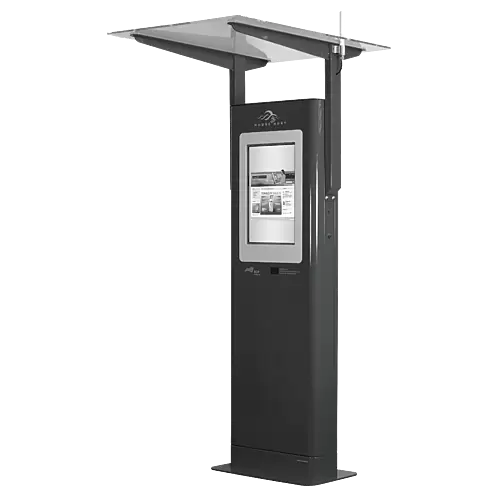

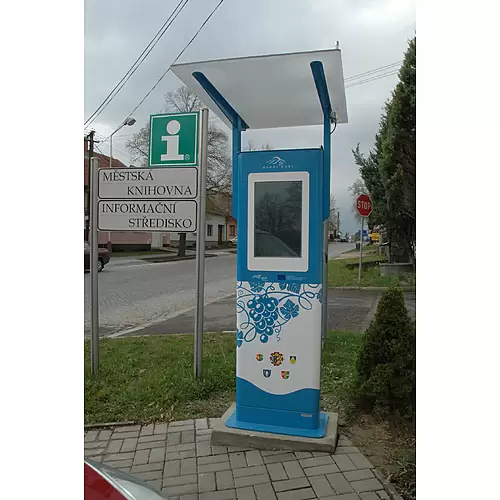

22" LCD ROOF

  • 21,5“ LCD 1500nits, 1080x1920
  • Vandal-proof PCap touchscreen, 6mm glass
  • Options for lot of additional peripherals
  • Dimms: 2100(H) x 840(W) x 960(D)mm
Outdoor kiosk Hawk
Outdoor kiosk Hawk

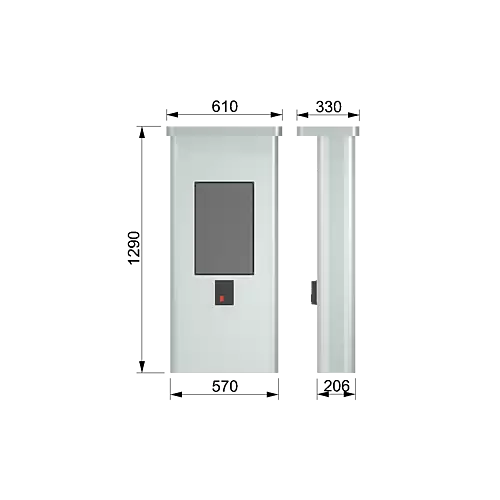

22" LCD WALL

  • 21,5“ LCD 1500nits, 1080x1920
  • Vandal-proof PCap touchscreen, 6mm glass
  • Options for lot of additional peripherals
  • Dimms: 1240(H) x 570(W) x 210(D)mm (without roof)
Outdoor kiosk Hawk
Outdoor kiosk Hawk

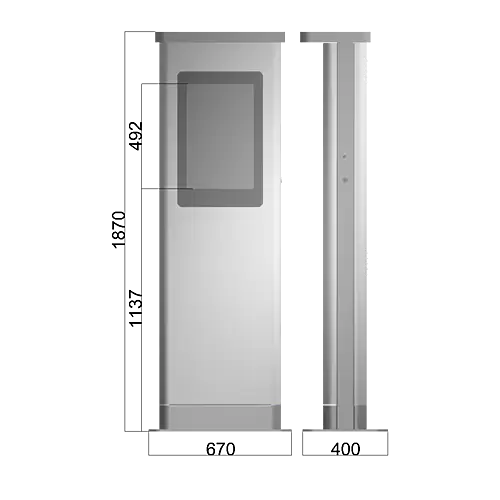

32" LCD

  • 31,5“ LCD 1500nits, 1080x1920
  • Vandal-proof PCap touchscreen, 6mm glass
  • Options for lot of additional peripherals
  • Dimms: 1820(H) x 570(W) x 210(D)mm (without roof)
Outdoor kiosk Hawk
Outdoor kiosk Hawk

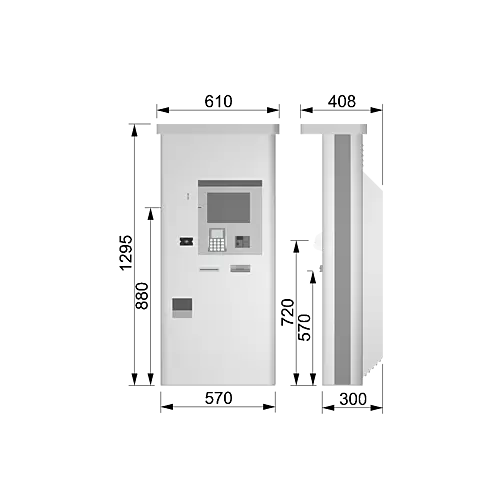

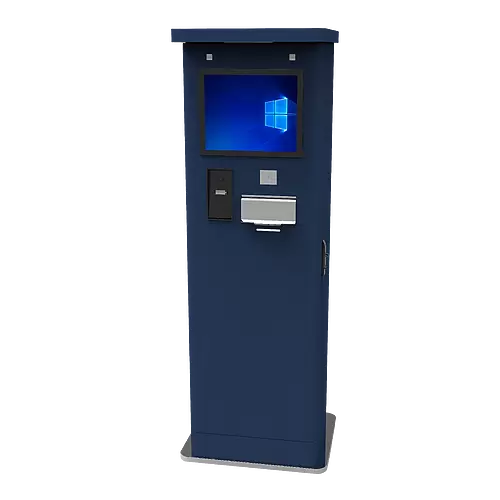

WALL PAYMENT

  • 15“ LCD 1000nits, 1024x768
  • Vandalproof sensor PCap, 6mm glass
  • Dimensions: 1295(h) x 610(w) x 300(d) mm (without roof)
Outdoor kiosk Hawk
Outdoor kiosk Hawk

OPTIONAL PERIPHERALS

  • 17“ up to 32“ High Bright LCD with PCap touchscreen
  • Metal keyboard with trackball
  • Coin selector
  • Note acceptor
  • Card reader(chip, magnetic, noncontact)
  • Pinpad
  • Thermal Printer
  • UPS
  • Dispenser
  • Hopper
  • Camera, speakers or Microphone
  • Telephone handset
  • Barcode reader
  • SiteKiosk Internet Browser
  • Wide colour choice according to RAL scheme
  • Custom graphics
  • WiFi
  • Metal roof with toplight
  • Plexiglass roof
  • Stainless steel pedestal with protection bar
  • Remote control unit
  • Other peripherals on request
