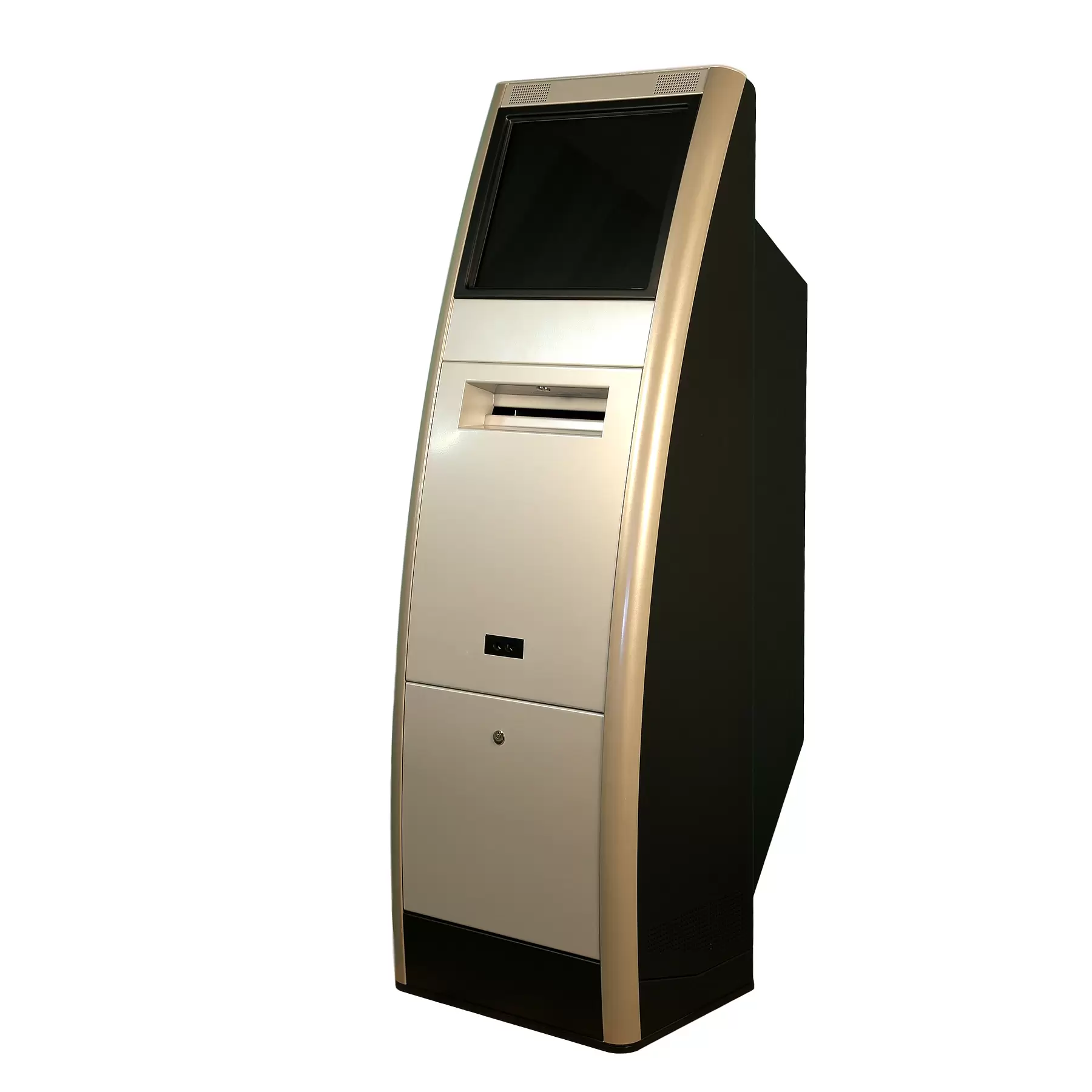

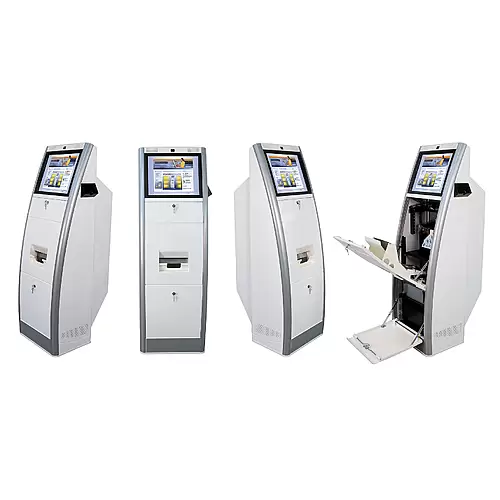

Payment kiosk Eagle Magnum

Eagle Magnum

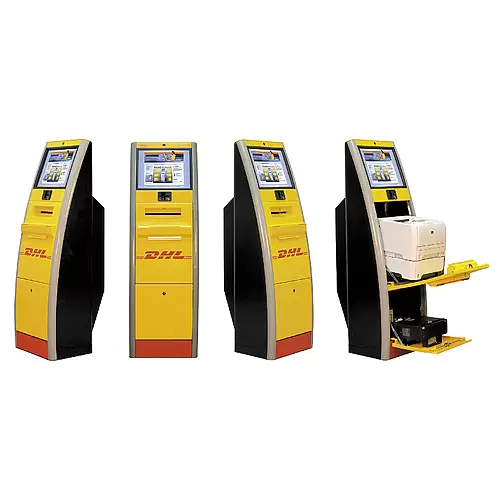

This Eagle kiosk version benefits from the addition of a secure mult-lock mechanism for the front doors and a larger, deeper, removable back cover.
These enhancements make it suitable for payment applications or the integration of larger peripherals. It is secure enough to leave unattended.

PAYMENT KIOSK EAGLE MAGNUM - BASIC SPECIFICATION

  • Aluminium construction with metal and plastic components
  • Any RAL Colour
  • Flexible solution for additional peripherals
  • Fully secured wiring is installed for maximum user safety and kiosk hardware protection
  • 19“-22" LCD with touch screen
  • Active speakers
  • The Eagle Magnum kiosk is available in many different configurations depending on the application

A simpler and slimmer variant of this kiosk is the Eagle Standard. The new variant which can be equiped up to 32inch screen is the Eagle Magnum II.

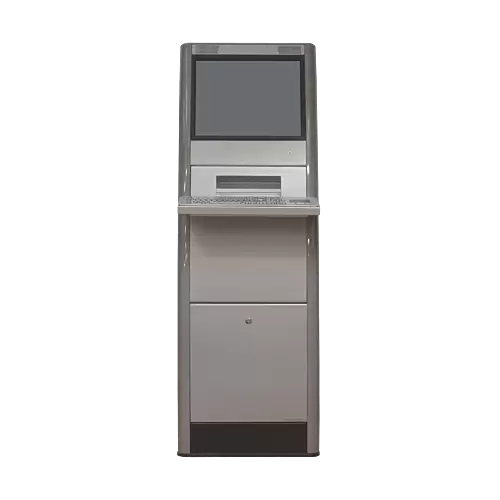

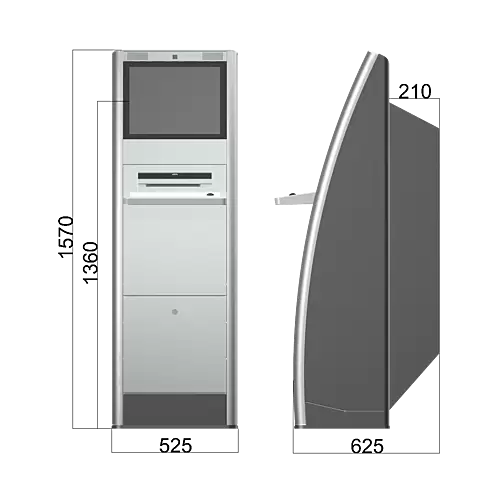

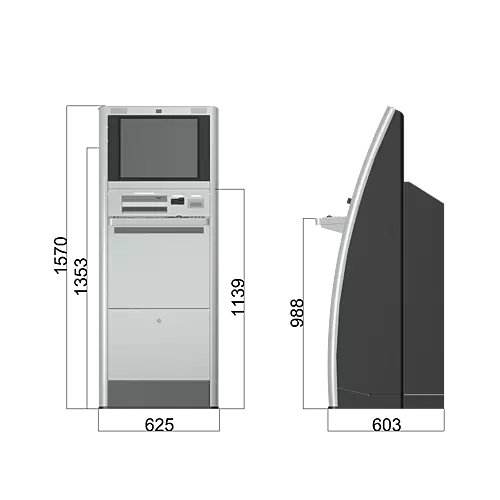

Eagle Magnum 19"

  • 19" LCD display, 5:4
  • Brightness 250cd; Resolution 1280x1024
  • PCAP multi-touch flat sensor, antiglare
  • Weight 90-100 kg
  • Possible integration of many peripherals
  • Kiosk dimmensions: 1570x520x625mm
Payment kiosk Eagle Magnum
Payment kiosk Eagle Magnum

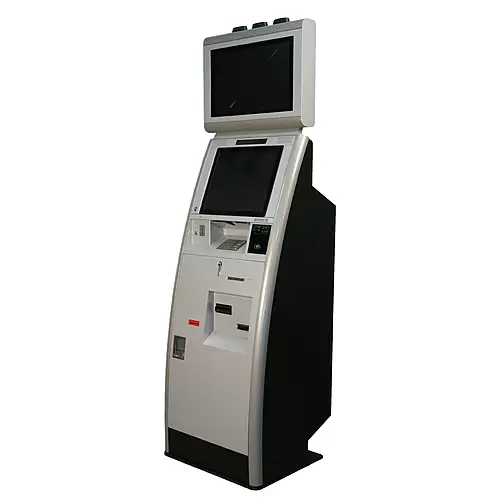

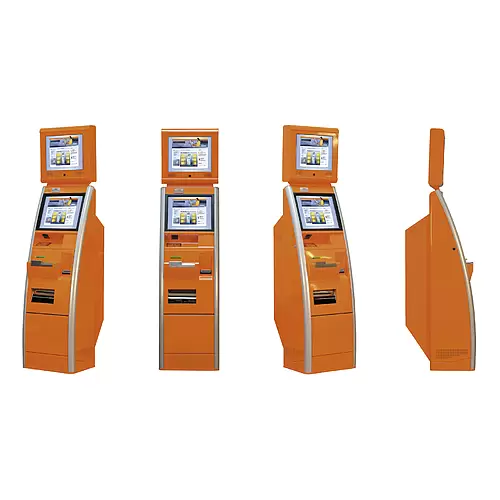

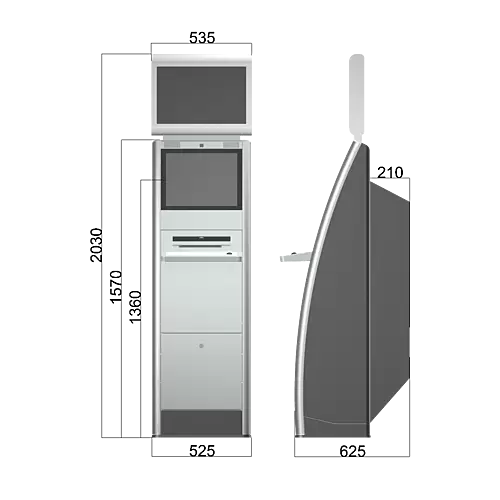

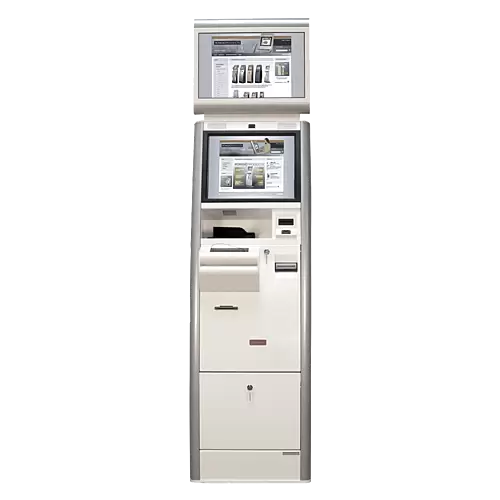

Eagle Magnum 19" - ADV

  • 19" LCD display, 5:4
  • Extra Advertising Display 19“ (wide) and up
  • Height 203cm (with 19" adv.display)
Payment kiosk Eagle Magnum
Payment kiosk Eagle Magnum

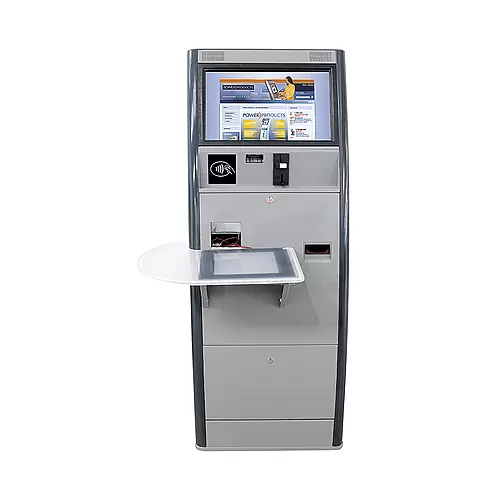

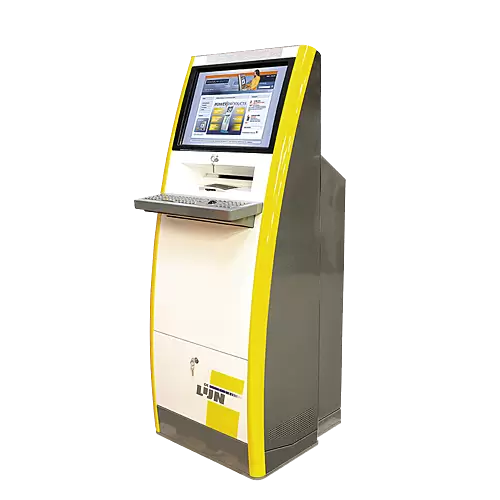

Eagle Magnum Wide 22"

  • 21,5" LCD display, 16:9
  • Brightness 250cd; FullHD resolution
  • PCAP multi-touch flat sensor, antiglare
  • Weight 100-120 kg
  • Possible integration of many peripherals
  • Kiosk dimensions: 1570x620x600mm
Payment kiosk Eagle Magnum
Payment kiosk Eagle Magnum

OPTIONAL

  • Industrial PC Intel Core i3 or i5
  • Vandalproof sensor
  • Privacy filter
  • Metal keyboard with trackball
  • Coin selector
  • Note acceptor
  • Card reader (chip, magnetic, non-contact)
  • Pinpad
  • Laser-Printer
  • Thermal printer
  • UPS
  • Note Dispenser
  • Coin Hopper
  • Camera
  • Telephone handset
  • Barcode reader
  • SiteKiosk Internet Browser
  • Custom graphics
  • WLAN
  • Other peripherals on request
